model package¶
The Model Package handles interfacing with the neural network backend and holds custom objects.
Contents
model.backup_restore module¶
Functions for backing up, restoring and creating model snapshots.

class
lib.model.backup_restore.
Backup
(model_dir, model_name)¶ Bases:
object
Performs the back up of models at each save iteration, and the restoring of models from their back up location.
Parameters:  model_dir (str) – The folder that contains the model to be backed up
 model_name (str) – The name of the model that is to be backed up

static
backup_model
(full_path)¶ Backup a model file.
The backed up file is saved with the original filename in the original location with .bk appended to the end of the name.
Parameters: full_path (str) – The full path to a .h5 model file or a .json state file

restore
()¶ Restores a model from backup.
The original model files are migrated into a folder within the original model folder named <model_name>_archived_<timestamp>. The .bk backup files are then moved to the location of the previously existing model files. Logs that were generated after the the last backup was taken are removed.

snapshot_models
(iterations)¶ Take a snapshot of the model at the current state and back it up.
The snapshot is a copy of the model folder located in the same root location as the original model file, with the number of iterations appended to the end of the folder name.
Parameters: iterations (int) – The number of iterations that the model has trained when performing the snapshot.
model.initializers module¶
Module Summary
ConvolutionAware
Initializer that generates orthogonal convolution filters in the Fourier space.
ICNR
ICNR initializer for checkerboard artifact free sub pixel convolution
compute_fans
Computes the number of input and output units for a weight shape.
Custom Initializers for faceswap.py

class
lib.model.initializers.
ConvolutionAware
(eps_std=0.05, seed=None, initialized=False)¶ Bases:
keras.initializers.Initializer
Initializer that generates orthogonal convolution filters in the Fourier space. If this initializer is passed a shape that is not 3D or 4D, orthogonal initialization will be used.
Adapted, fixed and optimized from: https://github.com/kerasteam/kerascontrib/blob/master/keras_contrib/initializers/convaware.py
Parameters:  eps_std (float, optional) – The Standard deviation for the random normal noise used to break symmetry in the inverse Fourier transform. Default: 0.05
 seed (int, optional) – Used to seed the random generator. Default:
None
 initialized (bool, optional) – This should always be set to
False
. To avoid Keras recalculating the values every time the model is loaded, this parameter is internally set on first time initialization. Default:False
Returns: The modified kernel weights
Return type: tensor
References
Armen Aghajanyan, https://arxiv.org/abs/1702.06295

get_config
()¶ Return the Convolutional Aware Initializer configuration.
Returns: The configuration for ICNR Initialization Return type: dict

class
lib.model.initializers.
ICNR
(initializer, scale=2)¶ Bases:
keras.initializers.Initializer
ICNR initializer for checkerboard artifact free sub pixel convolution
Parameters:  initializer (
keras.initializers.Initializer
) – The initializer used for sub kernels (orthogonal, glorot uniform, etc.)  scale (int, optional) – scaling factor of sub pixel convolution (up sampling from 8x8 to 16x16 is scale 2). Default: 2
Returns: The modified kernel weights
Return type: tensor
Example
>>> x = conv2d(... weights_initializer=ICNR(initializer=he_uniform(), scale=2))
References
Andrew Aitken et al. Checkerboard artifact free subpixel convolution https://arxiv.org/pdf/1707.02937.pdf, https://distill.pub/2016/deconvcheckerboard/

get_config
()¶ Return the ICNR Initializer configuration.
Returns: The configuration for ICNR Initialization Return type: dict
 initializer (

lib.model.initializers.
compute_fans
(shape, data_format='channels_last')¶ Computes the number of input and output units for a weight shape.
Ported directly from Keras as the location moves between keras and tensorflowkeras
Parameters:  shape (tuple) – shape tuple of integers
 data_format (str) – Image data format to use for convolution kernels. Note that all kernels in Keras are standardized on the “channels_last” ordering (even when inputs are set to “channels_first”).
Returns: A tuple of scalars, (fan_in, fan_out).
Return type: tuple
Raises: ValueError
– In case of invalid data_format argument.
model.layers module¶
Module Summary
GlobalMinPooling2D
Global minimum pooling operation for spatial data.
GlobalStdDevPooling2D
Global standard deviation pooling operation for spatial data.
L2_normalize
Normalizes a tensor w.r.t.
PixelShuffler
PixelShuffler layer for Keras.
ReflectionPadding2D
Reflectionpadding layer for 2D input (e.g.
SubPixelUpscaling
Subpixel convolutional upscaling layer.
Custom Layers for faceswap.py.

class
lib.model.layers.
GlobalMinPooling2D
(data_format=None, **kwargs)¶ Bases:
lib.model.layers._GlobalPooling2D
Global minimum pooling operation for spatial data.

call
(inputs, **kwargs)¶ This is where the layer’s logic lives.
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments
Returns: A tensor or list/tuple of tensors
Return type: tensor


class
lib.model.layers.
GlobalStdDevPooling2D
(data_format=None, **kwargs)¶ Bases:
lib.model.layers._GlobalPooling2D
Global standard deviation pooling operation for spatial data.

call
(inputs, **kwargs)¶ This is where the layer’s logic lives.
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments
Returns: A tensor or list/tuple of tensors
Return type: tensor


class
lib.model.layers.
KResizeImages
(size=2, interpolation='nearest', **kwargs)¶ Bases:
keras.engine.base_layer.Layer
A custom upscale function that uses
keras.backend.resize_images
to upsample.Parameters:  size (int or float, optional) – The scale to upsample to. Default: 2
 interpolation (["nearest", "bilinear"], optional) – The interpolation to use. Default: “nearest”
 kwargs (dict) – The standard Keras Layer keyword arguments (if any)

call
(inputs, **kwargs)¶ Call the upsample layer
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments. Unused
Returns: A tensor or list/tuple of tensors
Return type: tensor

compute_output_shape
(input_shape)¶ Computes the output shape of the layer.
This is the input shape with size dimensions multiplied by
size
Parameters: input_shape (tuple or list of tuples) – Shape tuple (tuple of integers) or list of shape tuples (one per output tensor of the layer). Shape tuples can include None for free dimensions, instead of an integer. Returns: An input shape tuple Return type: tuple

get_config
()¶ Returns the config of the layer.
Returns: A python dictionary containing the layer configuration Return type: dict

class
lib.model.layers.
L2_normalize
(axis, **kwargs)¶ Bases:
keras.engine.base_layer.Layer
Normalizes a tensor w.r.t. the L2 norm alongside the specified axis.
Parameters:  axis (int) – The axis to perform normalization across
 kwargs (dict) – The standard Keras Layer keyword arguments (if any)

call
(inputs)¶ This is where the layer’s logic lives.
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments
Returns: A tensor or list/tuple of tensors
Return type: tensor

get_config
()¶ Returns the config of the layer.
A layer config is a Python dictionary (serializable) containing the configuration of a layer. The same layer can be reinstated later (without its trained weights) from this configuration.
The configuration of a layer does not include connectivity information, nor the layer class name. These are handled by Network (one layer of abstraction above).
Returns: A python dictionary containing the layer configuration Return type: dict

class
lib.model.layers.
PixelShuffler
(size=(2, 2), data_format=None, **kwargs)¶ Bases:
keras.engine.base_layer.Layer
PixelShuffler layer for Keras.
This layer requires a Convolution2D prior to it, having output filters computed according to the formula \(filters = k * (scale_factor * scale_factor)\) where k is a user defined number of filters (generally larger than 32) and scale_factor is the upscaling factor (generally 2).
This layer performs the depth to space operation on the convolution filters, and returns a tensor with the size as defined below.
Notes
In practice, it is useful to have a second convolution layer after the
PixelShuffler
layer to speed up the learning process. However, if you are stacking multiplePixelShuffler
blocks, it may increase the number of parameters greatly, so the Convolution layer afterPixelShuffler
layer can be removed.Example
>>> # A standard subpixel upscaling block >>> x = Convolution2D(256, 3, 3, padding="same", activation="relu")(...) >>> u = PixelShuffler(size=(2, 2))(x) [Optional] >>> x = Convolution2D(256, 3, 3, padding="same", activation="relu")(u)
Parameters:  size (tuple, optional) – The (h, w) scaling factor for upscaling. Default: (2, 2)
 data_format ([“channels_first”, “channels_last”,
None
], optional) – The data format for the input. Default:None
 kwargs (dict) – The standard Keras Layer keyword arguments (if any)
References
https://gist.github.com/tae/6e1016cc188104d123676ccef3264981

call
(inputs, **kwargs)¶ This is where the layer’s logic lives.
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments. Unused
Returns: A tensor or list/tuple of tensors
Return type: tensor

compute_output_shape
(input_shape)¶ Computes the output shape of the layer.
Assumes that the layer will be built to match that input shape provided.
Parameters: input_shape (tuple or list of tuples) – Shape tuple (tuple of integers) or list of shape tuples (one per output tensor of the layer). Shape tuples can include None for free dimensions, instead of an integer. Returns: An input shape tuple Return type: tuple

get_config
()¶ Returns the config of the layer.
A layer config is a Python dictionary (serializable) containing the configuration of a layer. The same layer can be reinstated later (without its trained weights) from this configuration.
The configuration of a layer does not include connectivity information, nor the layer class name. These are handled by Network (one layer of abstraction above).
Returns: A python dictionary containing the layer configuration Return type: dict

class
lib.model.layers.
ReflectionPadding2D
(stride=2, kernel_size=5, **kwargs)¶ Bases:
keras.engine.base_layer.Layer
Reflectionpadding layer for 2D input (e.g. picture).
This layer can add rows and columns at the top, bottom, left and right side of an image tensor.
Parameters:  stride (int, optional) – The stride of the following convolution. Default: 2
 kernel_size (int, optional) – The kernel size of the following convolution. Default: 5
 kwargs (dict) – The standard Keras Layer keyword arguments (if any)

build
(input_shape)¶ Creates the layer weights.
Must be implemented on all layers that have weights.
Parameters: input_shape (tensor) – Keras tensor (future input to layer) or list
/tuple
of Keras tensors to reference for weight shape computations.

call
(var_x, mask=None)¶ This is where the layer’s logic lives.
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments
Returns: A tensor or list/tuple of tensors
Return type: tensor

compute_output_shape
(input_shape)¶ Computes the output shape of the layer.
Assumes that the layer will be built to match that input shape provided.
Parameters: input_shape (tuple or list of tuples) – Shape tuple (tuple of integers) or list of shape tuples (one per output tensor of the layer). Shape tuples can include None for free dimensions, instead of an integer. Returns: An input shape tuple Return type: tuple

get_config
()¶ Returns the config of the layer.
A layer config is a Python dictionary (serializable) containing the configuration of a layer. The same layer can be reinstated later (without its trained weights) from this configuration.
The configuration of a layer does not include connectivity information, nor the layer class name. These are handled by Network (one layer of abstraction above).
Returns: A python dictionary containing the layer configuration Return type: dict

class
lib.model.layers.
SubPixelUpscaling
(scale_factor=2, data_format=None, **kwargs)¶ Bases:
keras.engine.base_layer.Layer
Subpixel convolutional upscaling layer.
This layer requires a Convolution2D prior to it, having output filters computed according to the formula \(filters = k * (scale_factor * scale_factor)\) where k is a user defined number of filters (generally larger than 32) and scale_factor is the upscaling factor (generally 2).
This layer performs the depth to space operation on the convolution filters, and returns a tensor with the size as defined below.
Notes
This method is deprecated as it just performs the same as
PixelShuffler
using explicit Tensorflow ops. The method is kept in the repository to support legacy models that have been created with this layer.In practice, it is useful to have a second convolution layer after the
SubPixelUpscaling
layer to speed up the learning process. However, if you are stacking multipleSubPixelUpscaling
blocks, it may increase the number of parameters greatly, so the Convolution layer afterSubPixelUpscaling
layer can be removed.Example
>>> # A standard subpixel upscaling block >>> x = Convolution2D(256, 3, 3, padding="same", activation="relu")(...) >>> u = SubPixelUpscaling(scale_factor=2)(x) [Optional] >>> x = Convolution2D(256, 3, 3, padding="same", activation="relu")(u)
Parameters:  size (int, optional) – The upscaling factor. Default: 2
 data_format ([“channels_first”, “channels_last”,
None
], optional) – The data format for the input. Default:None
 kwargs (dict) – The standard Keras Layer keyword arguments (if any)
References
based on the paper “RealTime Single Image and Video SuperResolution Using an Efficient SubPixel Convolutional Neural Network” (https://arxiv.org/abs/1609.05158).

build
(input_shape)¶ Creates the layer weights.
Must be implemented on all layers that have weights.
Parameters: input_shape (tensor) – Keras tensor (future input to layer) or list
/tuple
of Keras tensors to reference for weight shape computations.

call
(inputs, **kwargs)¶ This is where the layer’s logic lives.
Parameters:  inputs (tensor) – Input tensor, or list/tuple of input tensors
 kwargs (dict) – Additional keyword arguments. Unused
Returns: A tensor or list/tuple of tensors
Return type: tensor

compute_output_shape
(input_shape)¶ Computes the output shape of the layer.
Assumes that the layer will be built to match that input shape provided.
Parameters: input_shape (tuple or list of tuples) – Shape tuple (tuple of integers) or list of shape tuples (one per output tensor of the layer). Shape tuples can include None for free dimensions, instead of an integer. Returns: An input shape tuple Return type: tuple

get_config
()¶ Returns the config of the layer.
A layer config is a Python dictionary (serializable) containing the configuration of a layer. The same layer can be reinstated later (without its trained weights) from this configuration.
The configuration of a layer does not include connectivity information, nor the layer class name. These are handled by Network (one layer of abstraction above).
Returns: A python dictionary containing the layer configuration Return type: dict

class
lib.model.layers.
Swish
(beta=1.0, **kwargs)¶ Bases:
keras.engine.base_layer.Layer
Swish Activation Layer implementation for Keras.
Parameters:  beta (float, optional) – The beta value to apply to the activation function. Default: 1.0
 kwargs (dict) – The standard Keras Layer keyword arguments (if any)
References
Swish: a SelfGated Activation Function: https://arxiv.org/abs/1710.05941v1

call
(inputs)¶ Call the Swish Activation function.
Parameters: inputs (tensor) – Input tensor, or list/tuple of input tensors

get_config
()¶ Returns the config of the layer.
Adds the
beta
to config.Returns: A python dictionary containing the layer configuration Return type: dict
model.losses module¶
The losses listed here are generated from the docstrings in lib.model.losses_tf
, however
the functions are excactly the same for lib.model.losses_plaid
. The correct loss module will
be imported as lib.model.losses
depending on the backend in use.
Module Summary
DSSIMObjective
DSSIM Loss Function
GeneralizedLoss
Generalized function used to return a large variety of mathematical loss functions.
GMSDLoss
Gradient Magnitude Similarity Deviation Loss.
GradientLoss
Gradient Loss Function.
LInfNorm
Calculate the Linf norm as a loss function.
LossWrapper
A wrapper class for multiple keras losses to enable multiple weighted loss functions on a single output.
Custom Loss Functions for faceswap.py

class
lib.model.losses_tf.
DSSIMObjective
(k_1=0.01, k_2=0.03, kernel_size=3, max_value=1.0)¶ Bases:
tensorflow.python.keras.losses.Loss
DSSIM Loss Function
Difference of Structural Similarity (DSSIM loss function). Clipped between 0 and 0.5
Parameters:  k_1 (float, optional) – Parameter of the SSIM. Default: 0.01
 k_2 (float, optional) – Parameter of the SSIM. Default: 0.03
 kernel_size (int, optional) – Size of the sliding window Default: 3
 max_value (float, optional) – Max value of the output. Default: 1.0
Notes
You should add a regularization term like a l2 loss in addition to this one.
References
https://github.com/kerasteam/kerascontrib/blob/master/keras_contrib/losses/dssim.py
MIT License
Copyright (c) 2017 Fariz Rahman
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

call
(y_true, y_pred)¶ Call the DSSIM Loss Function.
Parameters:  y_true (tensor or variable) – The ground truth value
 y_pred (tensor or variable) – The predicted value
Returns: The DSSIM Loss value
Return type: tensor
Notes
There are additional parameters for this function. some of the ‘modes’ for edge behavior do not yet have a gradient definition in the Theano tree and cannot be used for learning

extract_image_patches
(input_tensor, k_sizes, s_sizes, padding='same', data_format='channels_last')¶ Extract the patches from an image.
Parameters:  input_tensor (tensor) – The input image
 k_sizes (tuple) – 2d tuple with the kernel size
 s_sizes (tuple) – 2d tuple with the strides size
 padding (str, optional) – “same” or “valid”. Default: “same”
 data_format (str, optional.) – “channels_last” or “channels_first”. Default: “channels_last”
Returns: Tensorflow ==> (batch_size, w, h, k_w, k_h, c) Theano ==> (batch_size, w, h, c, k_w, k_h)
Return type: The (k_w, k_h) patches extracted

class
lib.model.losses_tf.
GMSDLoss
(reduction='auto', name=None)¶ Bases:
tensorflow.python.keras.losses.Loss
Gradient Magnitude Similarity Deviation Loss.
Improved image quality metric over MSSSIM with easier calculations
References
http://www4.comp.polyu.edu.hk/~cslzhang/IQA/GMSD/GMSD.htm https://arxiv.org/ftp/arxiv/papers/1308/1308.3052.pdf

call
(y_true, y_pred)¶ Return the Gradient Magnitude Similarity Deviation Loss.
Parameters:  y_true (tensor or variable) – The ground truth value
 y_pred (tensor or variable) – The predicted value
Returns: The loss value
Return type: tensor


class
lib.model.losses_tf.
GeneralizedLoss
(alpha=1.0, beta=0.00392156862745098)¶ Bases:
tensorflow.python.keras.losses.Loss
Generalized function used to return a large variety of mathematical loss functions.
The primary benefit is a smooth, differentiable version of L1 loss.
References
Barron, J. A More General Robust Loss Function  https://arxiv.org/pdf/1701.03077.pdf
Example
>>> a=1.0, x>>c , c=1.0/255.0 # will give a smoothly differentiable version of L1 / MAE loss >>> a=1.999999 (limit as a>2), beta=1.0/255.0 # will give L2 / RMSE loss
Parameters:  alpha (float, optional) – Penalty factor. Larger number give larger weight to large deviations. Default: 1.0
 beta (float, optional) – Scale factor used to adjust to the input scale (i.e. inputs of mean 1e4 or 256). Default: 1.0/255.0

call
(y_true, y_pred)¶ Call the Generalized Loss Function
Parameters:  y_true (tensor or variable) – The ground truth value
 y_pred (tensor or variable) – The predicted value
Returns: The loss value from the results of function(y_pred  y_true)
Return type: tensor

class
lib.model.losses_tf.
GradientLoss
¶ Bases:
tensorflow.python.keras.losses.Loss
Gradient Loss Function.
Calculates the first and second order gradient difference between pixels of an image in the x and y dimensions. These gradients are then compared between the ground truth and the predicted image and the difference is taken. When used as a loss, its minimization will result in predicted images approaching the same level of sharpness / blurriness as the ground truth.
References
TV+TV2 Regularization with NonConvex SparsenessInducing Penalty for Image Restoration, Chengwu Lu & Hua Huang, 2014  http://downloads.hindawi.com/journals/mpe/2014/790547.pdf

call
(y_true, y_pred)¶ Call the gradient loss function.
Parameters:  y_true (tensor or variable) – The ground truth value
 y_pred (tensor or variable) – The predicted value
Returns: The loss value
Return type: tensor


class
lib.model.losses_tf.
LInfNorm
(reduction='auto', name=None)¶ Bases:
tensorflow.python.keras.losses.Loss
Calculate the Linf norm as a loss function.

call
(y_true, y_pred)¶ Call the Linf norm loss function.
Parameters:  y_true (tensor or variable) – The ground truth value
 y_pred (tensor or variable) – The predicted value
Returns: The loss value
Return type: tensor


class
lib.model.losses_tf.
LossWrapper
¶ Bases:
tensorflow.python.keras.losses.Loss
A wrapper class for multiple keras losses to enable multiple weighted loss functions on a single output.

add_loss
(function, weight=1.0, mask_channel=1)¶ Add the given loss function with the given weight to the loss function chain.
Parameters:  function (
keras.losses.Loss
) – The loss function to add to the loss chain  weight (float, optional) – The weighting to apply to the loss function. Default: 1.0
 mask_channel (int, optional) – The channel in the y_true image that the mask exists in. Set to 1 if there is no mask for the given loss function. Default: 1
 function (

call
(y_true, y_pred)¶ Call the sub loss functions for the loss wrapper.
Weights are returned as the weighted sum of the chosen losses.
If a mask is being applied to the loss, then the appropriate mask is extracted from y_true and added as the 4th channel being passed to the penalized loss function.
Parameters:  y_true (tensor or variable) – The ground truth value
 y_pred (tensor or variable) – The predicted value
Returns: The final loss value
Return type: tensor

model.nn_blocks module¶
Module Summary
Conv2D
A standard Keras Convolution 2D layer with parameters updated to be more appropriate for Faceswap architecture.
Conv2DBlock
A standard Convolution 2D layer which applies user specified configuration to the layer.
Conv2DOutput
A Convolution 2D layer that separates out the activation layer to explicitly set the data type on the activation to float 32 to fully support mixed precision training.
ResidualBlock
Residual block from dfaker.
SeparableConv2DBlock
Seperable Convolution Block.
Upscale2xBlock
Custom hybrid upscale layer for subpixel upscaling.
UpscaleBlock
An upscale layer for subpixel upscaling.
set_config
Set the global configuration parameters from the user’s config file.
Neural Network Blocks for faceswap.py.

class
lib.model.nn_blocks.
Conv2D
(*args, padding='same', check_icnr_init=False, **kwargs)¶ Bases:
keras.layers.convolutional.Conv2D
A standard Keras Convolution 2D layer with parameters updated to be more appropriate for Faceswap architecture.
Parameters are the same, with the same defaults, as a standard
keras.layers.Conv2D
except where listed below. The default initializer is updated to he_uniform or convolutional aware based on user configuration settings.Parameters:  padding (str, optional) – One of “valid” or “same” (caseinsensitive). Default: “same”. Note that “same” is slightly inconsistent across backends with strides != 1, as described here.
 check_icnr_init (bool, optional) –
True
if the user configuration options should be checked to apply ICNR initialization to the layer. This should only be passed in fromUpscaleBlock
layers. Default:False

class
lib.model.nn_blocks.
Conv2DBlock
(filters, kernel_size=5, strides=2, padding='same', normalization=None, activation='leakyrelu', use_depthwise=False, **kwargs)¶ Bases:
object
A standard Convolution 2D layer which applies user specified configuration to the layer.
Adds reflection padding if it has been selected by the user, and other postprocessing if requested by the plugin.
Adds instance normalization if requested. Adds a LeakyReLU if a residual block follows.
Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int, optional) – An integer or tuple/list of 2 integers, specifying the height and width of the 2D
convolution window. Can be a single integer to specify the same value for all spatial
dimensions. NB: If use_depthwise is
True
then a value must still be provided here, but it will be ignored. Default: 5  strides (tuple or int, optional) – An integer or tuple/list of 2 integers, specifying the strides of the convolution along the height and width. Can be a single integer to specify the same value for all spatial dimensions. Default: 2
 padding (["valid", "same"], optional) – The padding to use. NB: If reflect padding has been selected in the user configuration options, then this argument will be ignored in favor of reflect padding. Default: “same”
 normalization (str or
None
, optional) – Normalization to apply after the Convolution Layer. Select one of “batch” or “instance”. Set toNone
to not apply normalization. Default:None
 activation (str or
None
, optional) – The activation function to use. This is applied at the end of the convolution block. Select one of “leakyrelu”, “prelu” or “swish”. Set toNone
to not apply an activation function. Default: “leakyrelu”  use_depthwise (bool, optional) – Set to
True
to use a Depthwise Convolution 2D layer rather than a standard Convolution 2D layer. Default:False
 kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Convolutional 2D layer

class
lib.model.nn_blocks.
Conv2DOutput
(filters, kernel_size, activation='sigmoid', padding='same', **kwargs)¶ Bases:
object
A Convolution 2D layer that separates out the activation layer to explicitly set the data type on the activation to float 32 to fully support mixed precision training.
The Convolution 2D layer uses default parameters to be more appropriate for Faceswap architecture.
Parameters are the same, with the same defaults, as a standard
keras.layers.Conv2D
except where listed below. The default initializer is updated to he_uniform or convolutional aware based on user config settings.Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int or tuple/list of 2 ints) – The height and width of the 2D convolution window. Can be a single integer to specify the same value for all spatial dimensions.
 activation (str, optional) – The activation function to apply to the output. Default: “sigmoid”
 padding (str, optional) –
One of “valid” or “same” (caseinsensitive). Default: “same”. Note that “same” is slightly inconsistent across backends with strides != 1, as described here.
 kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Convolutional 2D layer

class
lib.model.nn_blocks.
DepthwiseConv2D
(*args, padding='same', check_icnr_init=False, **kwargs)¶ Bases:
keras.layers.convolutional.DepthwiseConv2D
A standard Keras Depthwise Convolution 2D layer with parameters updated to be more appropriate for Faceswap architecture.
Parameters are the same, with the same defaults, as a standard
keras.layers.DepthwiseConv2D
except where listed below. The default initializer is updated to he_uniform or convolutional aware based on user configuration settings.Parameters:  padding (str, optional) –
One of “valid” or “same” (caseinsensitive). Default: “same”. Note that “same” is slightly inconsistent across backends with strides != 1, as described here.
 check_icnr_init (bool, optional) –
True
if the user configuration options should be checked to apply ICNR initialization to the layer. This should only be passed in fromUpscaleBlock
layers. Default:False
 padding (str, optional) –

class
lib.model.nn_blocks.
ResidualBlock
(filters, kernel_size=3, padding='same', **kwargs)¶ Bases:
object
Residual block from dfaker.
Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int, optional) – An integer or tuple/list of 2 integers, specifying the height and width of the 2D convolution window. Can be a single integer to specify the same value for all spatial dimensions. Default: 3
 padding (["valid", "same"], optional) – The padding to use. Default: “same”
 kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Convolutional 2D layer
Returns: The output tensor from the Upscale layer
Return type: tensor

class
lib.model.nn_blocks.
SeparableConv2DBlock
(filters, kernel_size=5, strides=2, **kwargs)¶ Bases:
object
Seperable Convolution Block.
Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int, optional) – An integer or tuple/list of 2 integers, specifying the height and width of the 2D convolution window. Can be a single integer to specify the same value for all spatial dimensions. Default: 5
 strides (tuple or int, optional) – An integer or tuple/list of 2 integers, specifying the strides of the convolution along the height and width. Can be a single integer to specify the same value for all spatial dimensions. Default: 2
 kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Separable Convolutional 2D layer

class
lib.model.nn_blocks.
Upscale2xBlock
(filters, kernel_size=3, padding='same', activation='leakyrelu', interpolation='bilinear', sr_ratio=0.5, scale_factor=2, fast=False, **kwargs)¶ Bases:
object
Custom hybrid upscale layer for subpixel upscaling.
Most of upscaling is approximating lighting gradients which can be accurately achieved using linear fitting. This layer attempts to improve memory consumption by splitting with bilinear and convolutional layers so that the subpixel update will get details whilst the bilinear filter will get lighting.
Adds reflection padding if it has been selected by the user, and other postprocessing if requested by the plugin.
Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int, optional) – An integer or tuple/list of 2 integers, specifying the height and width of the 2D convolution window. Can be a single integer to specify the same value for all spatial dimensions. Default: 3
 padding (["valid", "same"], optional) – The padding to use. Default: “same”
 activation (str or
None
, optional) – The activation function to use. This is applied at the end of the convolution block. Select one of “leakyrelu”, “prelu” or “swish”. Set toNone
to not apply an activation function. Default: “leakyrelu”  interpolation (["nearest", "bilinear"], optional) – Interpolation to use for upsampling. Default: “bilinear”
 scale_factor (int, optional) – The amount to upscale the image. Default: 2
 sr_ratio (float, optional) – The proportion of super resolution (pixel shuffler) filters to use. Nonfast mode only. Default: 0.5
 fast (bool, optional) – Use a faster upscaling method that may appear more rugged. Default:
False
 kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Convolutional 2D layer

class
lib.model.nn_blocks.
UpscaleBlock
(filters, kernel_size=3, padding='same', scale_factor=2, normalization=None, activation='leakyrelu', **kwargs)¶ Bases:
object
An upscale layer for subpixel upscaling.
Adds reflection padding if it has been selected by the user, and other postprocessing if requested by the plugin.
Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int, optional) – An integer or tuple/list of 2 integers, specifying the height and width of the 2D convolution window. Can be a single integer to specify the same value for all spatial dimensions. Default: 3
 padding (["valid", "same"], optional) – The padding to use. NB: If reflect padding has been selected in the user configuration options, then this argument will be ignored in favor of reflect padding. Default: “same”
 scale_factor (int, optional) – The amount to upscale the image. Default: 2
 normalization (str or
None
, optional) – Normalization to apply after the Convolution Layer. Select one of “batch” or “instance”. Set toNone
to not apply normalization. Default:None
 activation (str or
None
, optional) – The activation function to use. This is applied at the end of the convolution block. Select one of “leakyrelu”, “prelu” or “swish”. Set toNone
to not apply an activation function. Default: “leakyrelu”  kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Convolutional 2D layer

class
lib.model.nn_blocks.
UpscaleResizeImagesBlock
(filters, kernel_size=3, padding='same', activation='leakyrelu', scale_factor=2, interpolation='bilinear')¶ Bases:
object
Upscale block that uses the Keras Backend function resize_images to perform the up scaling Similar in methodology to the
Upscale2xBlock
Adds reflection padding if it has been selected by the user, and other postprocessing if requested by the plugin.
Parameters:  filters (int) – The dimensionality of the output space (i.e. the number of output filters in the convolution)
 kernel_size (int, optional) – An integer or tuple/list of 2 integers, specifying the height and width of the 2D convolution window. Can be a single integer to specify the same value for all spatial dimensions. Default: 3
 padding (["valid", "same"], optional) – The padding to use. Default: “same”
 activation (str or
None
, optional) – The activation function to use. This is applied at the end of the convolution block. Select one of “leakyrelu”, “prelu” or “swish”. Set toNone
to not apply an activation function. Default: “leakyrelu”  scale_factor (int, optional) – The amount to upscale the image. Default: 2
 interpolation (["nearest", "bilinear"], optional) – Interpolation to use for upsampling. Default: “bilinear”
 kwargs (dict) – Any additional Keras standard layer keyword arguments to pass to the Convolutional 2D layer

lib.model.nn_blocks.
set_config
(configuration)¶ Set the global configuration parameters from the user’s config file.
These options are used when creating layers for new models.
Parameters: configuration (dict) – The configuration options that exist in the training configuration files that pertain specifically to Custom Faceswap Layers. The keys should be: icnr_init, conv_aware_init and ‘reflect_padding’

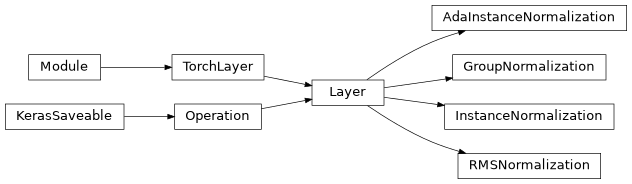

model.normalization module¶
Module Summary
InstanceNormalization
Instance normalization layer (Lei Ba et al, 2016, Ulyanov et al., 2016).
Conditional imports depending on whether the AMD version is installed or not
model.session module¶
Settings manager for Keras Backend

class
lib.model.session.
KSession
(name, model_path, model_kwargs=None, allow_growth=False, exclude_gpus=None)¶ Bases:
object
Handles the settings of backend sessions for inference models.
This class acts as a wrapper for various
keras.Model()
functions, ensuring that actions performed on a model are handled consistently and can be performed in parallel in separate threads.This is an early implementation of this class, and should be expanded out over time with relevant AMD, CPU and NVIDIA backend methods.
Notes
The documentation refers to
keras
. This is a pseudonym for eitherkeras
ortensorflow.keras
depending on the backend in use.Parameters:  name (str) – The name of the model that is to be loaded
 model_path (str) – The path to the keras model file
 model_kwargs (dict, optional) – Any kwargs that need to be passed to
keras.models.load_models()
. Default:None
 allow_growth (bool, optional) – Enable the Tensorflow GPU allow_growth configuration option. This option prevents
Tensorflow from allocating all of the GPU VRAM, but can lead to higher fragmentation and
slower performance. Default:
False
 exclude_gpus (list, optional) – A list of indices correlating to connected GPUs that Tensorflow should not use. Pass
None
to not exclude any GPUs. Default:None

append_softmax_activation
(layer_index=1)¶ Append a softmax activation layer to a model
Occasionally a softmax activation layer needs to be added to a model’s output. This is a convenience function to append this layer to the loaded model.
Parameters: layer_index (int, optional) – The layer index of the model to select the output from to use as an input to the softmax activation layer. Default: 1 (The final layer of the model)

define_model
(function)¶ Defines a model from the given function.
This method acts as a wrapper for
keras.models.Model()
.Parameters: function (function) – A function that defines a keras.Model
and returns it’sinputs
andoutputs
. The function that generates these results should be passed in, NOT the results themselves, as the function needs to be executed within the correct context.

load_model
()¶ Loads a model.
This method is a wrapper for
keras.models.load_model()
. Loads a model and its weights frommodel_path
defined during initialization of this class. Any additionalkwargs
to be passed tokeras.models.load_model()
should also be defined during initialization of the class.For Tensorflow backends, the make_predict_function method is called on the model to make it thread safe.

load_model_weights
()¶ Load model weights for a defined model inside the correct session.
This method is a wrapper for
keras.load_weights()
. Once a model has been defined indefine_model()
this method can be called to load its weights from themodel_path
defined during initialization of this class.For Tensorflow backends, the make_predict_function method is called on the model to make it thread safe.

predict
(feed, batch_size=None)¶ Get predictions from the model.
This method is a wrapper for
keras.predict()
function. For Tensorflow backends this is a straight call to the predict function. For PlaidML backends, this attempts to optimize the inference batch sizes to reduce the number of kernels that need to be compiled.Parameters: feed (numpy.ndarray or list) – The feed to be provided to the model as input. This should be a numpy.ndarray
for single inputs or a list ofnumpy.ndarray
objects for multiple inputs.
