tools.manual package

manual.face_viewer package

tools.manual.face_viewer.frame Module

The Faces Viewer Frame and Canvas for Faceswap’s Manual Tool.

class tools.manual.face_viewer.frame.ContextMenu(canvas, detected_faces)

Enables a right click context menu for the FacesViewer.

Parameters:

• canvas (tkinter.Canvas) – The FacesViewer canvas

• detected_faces (detected_faces) – The manual tool’s detected faces class

class tools.manual.face_viewer.frame.FacesActionsFrame(parent: FacesFrame)

The left hand action frame holding the optional annotation buttons.

Parameters:

parent (FacesFrame) – The Faces frame that this actions frame reside in

property key_bindings: dict[str, Literal['mask', 'mesh']]

The mapping of key presses to optional annotations to display. Keyboard shortcuts utilize the function keys.

Type:

dict

on_click(display: Literal['mesh', 'mask']) → None

Click event for the optional annotation buttons. Loads and unloads the annotations from the faces viewer.

Parameters:

display (Literal["mesh", "mask"]) – The display name for the button that has called this event as exists in _buttons

Return type:

None

class tools.manual.face_viewer.frame.FacesFrame(parent: ttk.Frame, tk_globals: TkGlobals, detected_faces: DetectedFaces, display_frame: DisplayFrame)

The faces display frame (bottom section of GUI). This frame holds the faces viewport and the tkinter objects.

Parameters:

• parent (ttk.Frame) – The paned window that the faces frame resides in

• tk_globals (TkGlobals) – The tkinter variables that apply to the whole of the GUI

• detected_faces (DetectedFaces) – The DetectedFace objects for this video

• display_frame (DisplayFrame) – The section of the Manual Tool that holds the frames viewer

canvas_scroll(direction: Literal['up', 'down', 'page-up', 'page-down']) → None

Scroll the canvas on an up/down or page-up/page-down key press.

Notes

To protect against a held down key press stacking tasks and locking up the GUI a background thread is launched and discards subsequent key presses whilst the previous update occurs.

Parameters:

direction (["up", "down", "page-up", "page-down"]) – The request page scroll direction and amount.

Return type:

None

set_annotation_display(key: str) → None

Set the optional annotation overlay based on keyboard shortcut.

Parameters:

key (str) – The pressed key

Return type:

None

class tools.manual.face_viewer.frame.FacesViewer(parent: ttk.Frame, tk_globals: TkGlobals, tk_action_vars: dict[T.Literal['mesh', 'mask'], tk.BooleanVar], detected_faces: DetectedFaces, display_frame: DisplayFrame, event: Event)

The tkinter.Canvas that holds the faces viewer section of the Manual Tool.

Parameters:

• parent (tkinter.ttk.Frame) – The parent frame for the canvas

• tk_globals (TkGlobals) – The tkinter variables that apply to the whole of the GUI

• tk_action_vars (dict) – The tkinter.BooleanVar objects for selectable optional annotations as set by the buttons in the FacesActionsFrame

• detected_faces (DetectedFaces) – The DetectedFace objects for this video

• display_frame (DisplayFrame) – The section of the Manual Tool that holds the frames viewer

• event (threading.Event) – The threading event object for repeated key press protection

canvas_scroll(amount: int, units: Literal['pages', 'units'], event: Event) → None

Scroll the canvas on an up/down or page-up/page-down key press.

Parameters:

• amount (int) – The number of units to scroll the canvas

• units (Literal["pages", "units"]) – The unit type to scroll by

• event (threading.Event) – event to indicate to the calling process whether the scroll is still updating

Return type:

None

property control_colors: dict[str, str]

The frame Editor name as key with the current user selected hex code as value.

Type:

dict[str, str]

property face_size: int

The currently selected thumbnail size in pixels

Type:

int

get_muted_color(color_key: str) → str

Creates a muted version of the given annotation color for non-active faces.

Parameters:

color_key (str) – The annotation key to obtain the color for from control_colors

Returns:

The hex color code of the muted color

Return type:

str

property layout: Grid

The grid for the current FacesViewer.

Type:

Grid

property optional_annotations: dict[Literal['mesh', 'mask'], bool]

The values currently set for the selectable optional annotations.

Type:

dict[Literal[“mesh”, “mask”], bool]

refresh_grid(trigger_var: BooleanVar, retain_position: bool = False) → None

Recalculate the full grid and redraw. Used when the active filter pull down is used, a face has been added or removed, or the face thumbnail size has changed.

Parameters:

• trigger_var (tkinter.BooleanVar) – The tkinter variable that has triggered the grid update. Will either be the variable indicating that the face size have been changed, or the variable indicating that the selected filter mode has been changed.

• retain_position (bool, optional) – True if the grid should be set back to the position it was at after the update has been processed, otherwise False. Default: False.

Return type:

None

property selected_mask: str

The currently selected mask from the display frame control panel.

Type:

str

property viewport: Viewport

The viewport area of the faces viewer.

Type:

Viewport

class tools.manual.face_viewer.frame.Grid(canvas: FacesViewer, detected_faces: DetectedFaces)

Holds information on the current filtered grid layout.

The grid keeps information on frame indices, face indices, x and y positions and detected face objects laid out in a numpy array to reflect the current full layout of faces within the face viewer based on the currently selected filter and face thumbnail size.

Parameters:

• canvas (FacesViewer) – The FacesViewer canvas

• detected_faces (DetectedFaces) – The DetectedFace objects for this video

property columns_rows: tuple[int, int]

the (columns, rows) required to hold all display images.

Type:

tuple

property dimensions: tuple[int, int]

The (width, height) required to hold all display images.

Type:

tuple

property face_size: int

The pixel size of each thumbnail within the face viewer.

Type:

int

frame_has_faces(frame_index: int) → bool | bool

Check whether the given frame index contains any faces.

Parameters:

frame_index (int) – The frame index to locate in the grid

Returns:

True if there are faces in the given frame otherwise False

Return type:

bool

property is_valid: bool

True if the current filter means that the grid holds faces. False if there are no faces displayed in the grid.

Type:

bool

transport_index_from_frame(frame_index: int) → int | None

Return the main frame’s transport index for the given frame index based on the current filter criteria.

Parameters:

frame_index (int) – The absolute index for the frame within the full frames list

Returns:

The index of the requested frame within the filtered frames view. None if no valid frames

Return type:

int | None

update() → None

Update the underlying grid.

Called on initialization, on a filter change or on add/remove faces. Recalculates the underlying grid for the current filter view and updates the attributes _grid, _display_faces, _raw_indices, _frames_list and is_valid

Return type:

None

property visible_area: tuple[ndarray, ndarray]

Tuple containing 2 arrays.

1st array contains an array of shape (4, rows, columns) corresponding to the viewable area of the display grid. 1st dimension contains frame indices, 2nd dimension face indices. The 3rd and 4th dimension contain the x and y position of the top left corner of the face respectively.

2nd array contains DetectedFace objects laid out in (rows, columns)

Any locations that are not populated by a face will have a frame and face index of -1

Type:

tuple[numpy.ndarray, numpy.ndarray]

y_coord_from_frame(frame_index: int) → int

Return the y coordinate for the first face that appears in the given frame.

Parameters:

frame_index (int) – The frame index to locate in the grid

Returns:

The y coordinate of the first face for the given frame

Return type:

int

Classes

ContextMenu(canvas, detected_faces)	Enables a right click context menu for the FacesViewer.
FacesActionsFrame(parent)	The left hand action frame holding the optional annotation buttons.
FacesFrame(parent, tk_globals, ...)	The faces display frame (bottom section of GUI).
FacesViewer(parent, tk_globals, ...)	The tkinter.Canvas that holds the faces viewer section of the Manual Tool.
Grid(canvas, detected_faces)	Holds information on the current filtered grid layout.

Class Inheritance Diagram

tools.manual.face_viewer.interact Module

Handles the viewport area for mouse hover actions and the active frame

class tools.manual.face_viewer.interact.ActiveFrame(viewport: Viewport, tk_edited_variable: tk.BooleanVar)

Handles the display of faces and annotations for the currently active frame.

Parameters:

• canvas (tkinter.Canvas) – The FacesViewer canvas

• tk_edited_variable (tkinter.BooleanVar) – The tkinter callback variable indicating that a face has been edited

• viewport (Viewport)

property current_frame: ndarray

A BGR version of the frame currently being displayed.

Type:

numpy.ndarray

property frame_index: int

The frame index of the currently displayed frame.

Type:

int

move_to_top() → None

Move the currently selected frame’s faces to the top of the viewport if they are moving off the bottom of the viewer.

Return type:

None

reload_annotations() → None

Handles the reloading of annotations for the currently active faces.

Highlights the faces within the viewport of those faces that exist in the currently displaying frame. Applies annotations based on the optional annotations and current editor selections.

Return type:

None

class tools.manual.face_viewer.interact.Asset(images: list[int], meshes: list[dict[T.Literal['polygon', 'line'], list[int]]], faces: list[DetectedFace], boxes: list[int])

Holds all of the display assets identifiers for the active frame’s face viewer objects

Parameters:

• images (list[int]) – Indices for a frame’s tk image ids displayed in the active frame

• meshes (list[dict[Literal["polygon", "line"], list[int]]]) – Indices for a frame’s tk line/polygon object ids displayed in the active frame

• faces (list[DetectedFace]) – DetectedFace objects that exist in the current frame

• boxes (list[int]) – Indices for a frame’s bounding box object ids displayed in the active frame

boxes: list[int] = <dataclasses._MISSING_TYPE object>

Indices for a frame’s bounding box object ids displayed in the active frame

Type:

list[int]

faces: list[DetectedFace] = <dataclasses._MISSING_TYPE object>

DetectedFace objects that exist in the current frame

Type:

list[DetectedFace]

images: list[int] = <dataclasses._MISSING_TYPE object>

Indices for a frame’s tk image ids displayed in the active frame

Type:

list[int]

meshes: list[dict[T.Literal['polygon', 'line'], list[int]]] = <dataclasses._MISSING_TYPE object>

Indices for a frame’s tk line/polygon object ids displayed in the active frame

Type:

list[dict[Literal[“polygon”, “line”], list[int]]]

class tools.manual.face_viewer.interact.HoverBox(viewport: Viewport)

Handle the current mouse location when over the Viewport.

Highlights the face currently underneath the cursor and handles actions when clicking on a face.

Parameters:

viewport (Viewport) – The viewport object for the FacesViewer canvas

on_hover(event: Event | None) → None

Highlight the face and set the mouse cursor for the mouse’s current location.

Parameters:

event (tkinter.Event or None) – The tkinter mouse event. Provides the current location of the mouse cursor. If None is passed as the event (for example when this function is being called outside of a mouse event) then the location of the cursor will be calculated

Return type:

None

Classes

ActiveFrame(viewport, tk_edited_variable)	Handles the display of faces and annotations for the currently active frame.
Asset(images, meshes, faces, boxes)	Holds all of the display assets identifiers for the active frame's face viewer objects
HoverBox(viewport)	Handle the current mouse location when over the Viewport.

tools.manual.face_viewer.viewport Module

Handles the visible area of the FacesViewer canvas.

class tools.manual.face_viewer.viewport.Recycler(canvas: FacesViewer)

Tkinter can slow down when constantly creating new objects.

This class delivers recycled objects, if stale objects are available, otherwise creates a new object

:param FacesViewer: The canvas that holds the faces display

Parameters:

canvas (FacesViewer)

get_image(coordinates: tuple[float | int, float | int]) → int

Obtain a recycled or new image object ID

Parameters:

coordinates (tuple[float | int, float | int]) – The co-ordinates that the image should be displayed at

Returns:

The canvas object id for the created image

Return type:

int

get_mesh(face: DetectedFace) → dict[T.Literal['polygon', 'line'], list[int]]

Get the mesh annotation for the landmarks. This is made up of a series of polygons or lines, depending on which part of the face is being annotated. Creates a new series of objects, or pulls existing objects from the recycled objects pool if they are available.

Parameters:

face (DetectedFace) – The detected face object to obrain the mesh for

Returns:

The dictionary of line and polygon tkinter canvas object ids for the mesh annotation

Return type:

dict[Literal[“polygon”, “line”], list[int]]

recycle_assets(asset_ids: list[int]) → None

Recycle assets that are no longer required

Parameters:

asset_ids (list[int]) – The IDs of the assets to be recycled

Return type:

None

class tools.manual.face_viewer.viewport.TKFace(face: ndarray, size: int = 128, mask: ndarray | None = None)

An object that holds a single tkinter.PhotoImage face, ready for placement in the Viewport, Handles the placement of and removal of masks for the face as well as updates on any edits.

Parameters:

• face (numpy.ndarray) – The face, sized correctly as a 3 channel BGR image or an encoded jpg to create a tkinter.PhotoImage from

• size (int, optional) – The pixel size of the face image. Default: 128

• mask (numpy.ndarray or None, optional) – The mask to be applied to the face image. Pass None if no mask is to be used. Default None

property photo: PhotoImage

The face in a format that can be placed on the FacesViewer canvas.

Type:

PIL.ImageTk.PhotoImage

update(face: ndarray, mask: ndarray) → None

Update the photo with the given face and mask.

Parameters:

• face (numpy.ndarray) – The face, sized correctly as a 3 channel BGR image

• mask (numpy.ndarray or None) – The mask to be applied to the face image. Pass None if no mask is to be used

Return type:

None

update_mask(mask: ndarray | None) → None

Update the mask in the 4th channel of photo to the given mask.

Parameters:

mask (numpy.ndarray or None) – The mask to be applied to the face image. Pass None if no mask is to be used

Return type:

None

class tools.manual.face_viewer.viewport.Viewport(canvas: FacesViewer, tk_edited_variable: tk.BooleanVar)

Handles the display of faces and annotations in the currently viewable area of the canvas.

Parameters:

• canvas (tkinter.Canvas) – The FacesViewer canvas

• tk_edited_variable (tkinter.BooleanVar) – The variable that indicates that a face has been edited

face_from_point(point_x: int, point_y: int) → ndarray

Given an (x, y) point on the Viewport, obtain the face information at that location.

Parameters:

• point_x (int) – The x position on the canvas of the point to retrieve the face for

• point_y (int) – The y position on the canvas of the point to retrieve the face for

Returns:

Array of shape (4, ) containing the (frame index, face index, x_point of top left corner, y point of top left corner) of the face at the given coordinates.

If the given coordinates are not over a face, then the frame and face indices will be -1

Return type:

numpy.ndarray

property face_size: int

The pixel size of each thumbnail

Type:

int

get_landmarks(frame_index: int, face_index: int, face: DetectedFace, top_left: list[float], refresh: bool = False) → dict[T.Literal['polygon', 'line'], list[np.ndarray]]

Obtain the landmark points for each mesh annotation.

First tries to obtain the aligned landmarks from the cache. If the landmarks do not exist in the cache, or a refresh has been requested, then the landmarks are calculated from the detected face object.

Parameters:

• frame_index (int) – The frame index to obtain the face for

• face_index (int) – The face index of the face within the requested frame

• face (lib.align.DetectedFace) – The detected face object to obtain landmarks for

• top_left (list[float]) – The top left (x, y) points of the face’s bounding box within the viewport

• refresh (bool, optional) – Whether to force a reload of the face’s aligned landmarks, even if they already exist within the cache. Default: False

Returns:

The key is the tkinter canvas object type for each part of the mesh annotation (polygon, line). The value is a list containing the (x, y) coordinates of each part of the mesh annotation, from the top left corner location.

Return type:

dict

get_tk_face(frame_index: int, face_index: int, face: DetectedFace) → TKFace

Obtain the TKFace object for the given face from the cache. If the face does not exist in the cache, then it is generated and added prior to returning.

Parameters:

• frame_index (int) – The frame index to obtain the face for

• face_index (int) – The face index of the face within the requested frame

• face (DetectedFace) – The detected face object, containing the thumbnail jpg

Returns:

An object for displaying in the faces viewer canvas populated with the aligned mesh landmarks and face thumbnail

Return type:

TKFace

property hover_box: HoverBox

The hover box for the viewport.

Type:

HoverBox

property mesh_kwargs: dict[Literal['polygon', 'line'], dict[str, Any]]

Dynamic keyword arguments defining the color and state for the objects that make up a single face’s mesh annotation based on the current user selected options. Values are the keyword arguments for that given type.

Type:

dict[Literal[“polygon”, “line”], str | int]

move_active_to_top() → None

Check whether the active frame is going off the bottom of the viewport, if so: move it to the top of the viewport.

Return type:

None

reset() → None

Reset all the cached objects on a face size change.

Return type:

None

property selected_editor: str

The currently selected editor.

Type:

str

toggle_mask(state: Literal['hidden', 'normal'], mask_type: str) → None

Toggles the mask optional annotation on and off.

Parameters:

• state (Literal["hidden", "normal"]) – Whether the mask should be displayed or hidden

• mask_type (str) – The type of mask to overlay onto the face

Return type:

None

toggle_mesh(state: Literal['hidden', 'normal']) → None

Toggles the mesh optional annotations on and off.

Parameters:

state (Literal["hidden", "normal"]) – The state to set the mesh annotations to

Return type:

None

update(refresh_annotations: bool = False) → None

Update the viewport.

Parameters:

• refresh_annotations (bool, optional) – True if mesh annotations should be re-calculated otherwise False. Default: False

• canvas (Obtains the objects that are currently visible. Updates the visible area of the)

• annotations. (and reloads the active frame's)

Return type:

None

class tools.manual.face_viewer.viewport.VisibleObjects(viewport: Viewport)

Holds the objects from the Grid that appear in the viewable area of the Viewport.

Parameters:

viewport (Viewport) – The viewport object for the FacesViewer canvas

property images: ndarray

The viewport’s tkinter canvas image objects.

A numpy array of shape (rows, columns) corresponding to the viewable area of the display grid and containing the tkinter canvas image object for the face at the corresponding location.

Type:

numpy.ndarray

property meshes: ndarray

The viewport’s tkinter canvas mesh annotation objects.

A numpy array of shape (rows, columns) corresponding to the viewable area of the display grid and containing a dictionary of the corresponding tkinter polygon and line objects required to build a face’s mesh annotation for the face at the corresponding location.

Type:

numpy.ndarray

update() → None

Load and unload thumbnails in the visible area of the faces viewer.

Return type:

None

property visible_faces: ndarray

The currently visible DetectedFace objects.

A numpy array of shape (rows, columns) corresponding to the viewable area of the display grid and containing the detected faces at their currently viewable position.

Any locations that are not populated by a face will have None in it’s place.

Type:

numpy.ndarray

property visible_grid: ndarray

The currently visible section of the Grid

A numpy array of shape (4, rows, columns) corresponding to the viewable area of the display grid. 1st dimension contains frame indices, 2nd dimension face indices. The 3rd and 4th dimension contain the x and y position of the top left corner of the face respectively.

Any locations that are not populated by a face will have a frame and face index of -1.

Type:

numpy.ndarray

Classes

Recycler(canvas)	Tkinter can slow down when constantly creating new objects.
TKFace(face[, size, mask])	An object that holds a single tkinter.PhotoImage face, ready for placement in the Viewport, Handles the placement of and removal of masks for the face as well as updates on any edits.
Viewport(canvas, tk_edited_variable)	Handles the display of faces and annotations in the currently viewable area of the canvas.
VisibleObjects(viewport)	Holds the objects from the Grid that appear in the viewable area of the Viewport.

manual.frame_viewer package

tools.manual.frame_viewer.control Module

Handles Navigation and Background Image for the Frame Viewer section of the manual tool GUI.

class tools.manual.frame_viewer.control.BackgroundImage(canvas)

The background image of the canvas

refresh(view_mode)

Update the displayed frame.

Parameters:

view_mode (["frame", "face"]) – The currently active editor’s selected view mode.

class tools.manual.frame_viewer.control.Navigation(display_frame)

Handles playback and frame navigation for the Frame Viewer Window.

Parameters:

display_frame (DisplayFrame) – The parent frame viewer window

decrement_frame()

Update The frame navigation position to the previous frame based on filter.

goto_first_frame()

Go to the first frame that meets the filter criteria.

goto_last_frame()

Go to the last frame that meets the filter criteria.

handle_play_button()

Handle the play button.

Switches the tk_is_playing variable.

increment_frame(frame_count=None, is_playing=False)

Update The frame navigation position to the next frame based on filter.

nav_scale_callback(*args, reset_progress=True)

Adjust transport slider scale for different filters. Hide or display optional filter controls.

stop_playback()

Stop play back if playing

property tk_is_playing

Whether the stream is currently playing.

Type:

tkinter.BooleanVar

Classes

BackgroundImage(canvas)	The background image of the canvas
Navigation(display_frame)	Handles playback and frame navigation for the Frame Viewer Window.

tools.manual.frame_viewer.frame Module

The frame viewer section of the manual tool GUI

class tools.manual.frame_viewer.frame.ActionsFrame(parent)

The left hand action frame holding the action buttons.

Parameters:

parent (DisplayFrame) – The Display frame that the Actions reside in

property actions

The available action names as a tuple of strings.

Type:

tuple

add_optional_buttons(editors)

Add the optional editor specific action buttons

property key_bindings

action}. The mapping of key presses to actions. Keyboard shortcut is the first letter of each action.

Type:

dict

Type:

{key

on_click(action)

Click event for all of the main buttons.

Parameters:

action (str) – The action name for the button that has called this event as exists in _buttons

property tk_selected_action

The variable holding the currently selected action

Type:

tkinter.StringVar

class tools.manual.frame_viewer.frame.DisplayFrame(parent, tk_globals, detected_faces)

The main video display frame (top left section of GUI).

Parameters:

• parent (ttk.PanedWindow) – The paned window that the display frame resides in

• tk_globals (TkGlobals) – The tkinter variables that apply to the whole of the GUI

• detected_faces (tools.manual.detected_faces.DetectedFaces) – The detected faces stored in the alignments file

property active_editor

The current editor in use based on selected_action.

Type:

Editor

cycle_filter_mode()

Cycle the navigation mode combo entry

property editors

All of the Editor that the canvas holds

Type:

dict

property navigation

Class that handles frame Navigation and transport.

Type:

Navigation

pack_threshold_slider()

Display or hide the threshold slider depending on the current filter mode. For misaligned faces filter, display the slider. Hide for all other filters.

set_action(key)

Set the current action based on keyboard shortcut

Parameters:

key (str) – The pressed key

property tk_control_colors

Editor key with tkinter.StringVar containing the selected color hex code for each annotation

Type:

dict

property tk_selected_action

The variable holding the currently selected action

Type:

tkinter.StringVar

property tk_selected_mask

Editor key with tkinter.StringVar containing the selected color hex code for each annotation

Type:

dict

class tools.manual.frame_viewer.frame.FrameViewer(parent, tk_globals, detected_faces, actions, tk_action_var)

Annotation onto tkInter Canvas.

Parameters:

• parent (tkinter.ttk.Frame) – The parent frame for the canvas

• tk_globals (TkGlobals) – The tkinter variables that apply to the whole of the GUI

• detected_faces (AlignmentsData) – The alignments data for this manual session

• actions (tuple) – The available actions from ActionFrame.actions

• tk_action_var (tkinter.StringVar) – The variable holding the currently selected action

property active_editor

The current editor in use based on selected_action.

Type:

Editor

property annotation_formats

The selected formatting options for each annotation

Type:

dict

property control_tk_vars

dictionary of tkinter variables as populated by the right hand control panel. Tracking for all control panel variables, for access from all editors.

Type:

dict

property editor_display

List of editors and any additional annotations they should display.

Type:

dict

property editors

All of the Editor objects that exist

Type:

dict

property key_bindings

dictionary of key bindings for each editor for access from all editors.

Type:

dict

property offset

The (width, height) offset of the canvas based on the size of the currently displayed image

Type:

tuple

property selected_action

The name of the currently selected Editor action

Type:

str

Classes

ActionsFrame(parent)	The left hand action frame holding the action buttons.
DisplayFrame(parent, tk_globals, detected_faces)	The main video display frame (top left section of GUI).
FrameViewer(parent, tk_globals, ...)	Annotation onto tkInter Canvas.

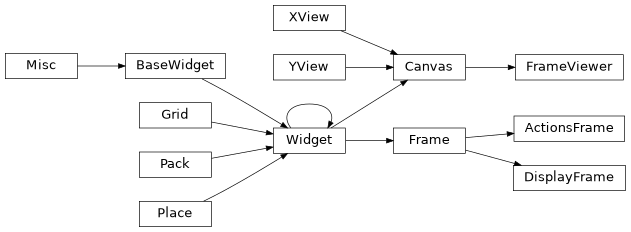

Class Inheritance Diagram

tools.manual.frame_viewer.editor.bounding_box Module

Bounding Box Editor for the manual adjustments tool

class tools.manual.frame_viewer.editor.bounding_box.BoundingBox(canvas, detected_faces)

The Bounding Box Editor.

Adjusting the bounding box feeds the aligner to generate new 68 point landmarks.

Parameters:

• canvas (tkinter.Canvas) – The canvas that holds the image and annotations

• detected_faces (DetectedFaces) – The _detected_faces data for this manual session

set_mouse_click_actions()

Add context menu to OS specific right click action.

update_annotation()

Get the latest bounding box data from alignments and update.

Classes

BoundingBox(canvas, detected_faces)

The Bounding Box Editor.

Class Inheritance Diagram

tools.manual.frame_viewer.editor.extract_box Module

Extract Box Editor for the manual adjustments tool

class tools.manual.frame_viewer.editor.extract_box.ExtractBox(canvas, detected_faces)

The Extract Box Editor.

Adjust the calculated Extract Box to shift all of the 68 point landmarks in place.

Parameters:

• canvas (tkinter.Canvas) – The canvas that holds the image and annotations

• detected_faces (DetectedFaces) – The _detected_faces data for this manual session

set_mouse_click_actions()

Add context menu to OS specific right click action.

update_annotation()

Draw the latest Extract Boxes around the faces.

Classes

ExtractBox(canvas, detected_faces)

The Extract Box Editor.

Class Inheritance Diagram

tools.manual.frame_viewer.editor.landmarks Module

Landmarks Editor and Landmarks Mesh viewer for the manual adjustments tool

class tools.manual.frame_viewer.editor.landmarks.Landmarks(canvas, detected_faces)

The Landmarks Editor.

Adjust individual landmark points and re-generate Extract Box.

Parameters:

• canvas (tkinter.Canvas) – The canvas that holds the image and annotations

• detected_faces (DetectedFaces) – The _detected_faces data for this manual session

update_annotation()

Get the latest Landmarks points and update.

class tools.manual.frame_viewer.editor.landmarks.Mesh(canvas, detected_faces)

The Landmarks Mesh Display.

There are no editing options for Mesh editor. It is purely aesthetic and updated when other editors are used.

Parameters:

• canvas (tkinter.Canvas) – The canvas that holds the image and annotations

• detected_faces (DetectedFaces) – The _detected_faces data for this manual session

update_annotation()

Get the latest Landmarks and update the mesh.

Classes

Landmarks(canvas, detected_faces)	The Landmarks Editor.
Mesh(canvas, detected_faces)	The Landmarks Mesh Display.

Class Inheritance Diagram

tools.manual.frame_viewer.editor.mask Module

Mask Editor for the manual adjustments tool

class tools.manual.frame_viewer.editor.mask.Mask(canvas: tk.Canvas, detected_faces: detected_faces.DetectedFaces)

The mask Editor.

Edit a mask in the alignments file.

Parameters:

• canvas (tk.Canvas) – The canvas that holds the image and annotations

• detected_faces (detected_faces.DetectedFaces) – The _detected_faces data for this manual session

hide_annotation(tag=None) → None

Clear the mask _meta dict when hiding the annotation.

Return type:

None

update_annotation() → None

Update the mask annotation with the latest mask.

Return type:

None

Classes

Mask(canvas, detected_faces)

The mask Editor.

Class Inheritance Diagram

manual package

tools.manual.cli Module

The Command Line Arguments for the Manual Editor tool.

class tools.manual.cli.ManualArgs(subparser: _SubParsersAction | None, command: str, description: str = 'default')

Generate the command line options for the Manual Editor Tool.

Parameters:

• subparser (_SubParsersAction | None)

• command (str)

• description (str)

static get_argument_list()

Generate the command line argument list for the Manual Tool.

static get_info()

Obtain the information about what the Manual Tool does.

Classes

ManualArgs(subparser, command[, description])

Generate the command line options for the Manual Editor Tool.

Class Inheritance Diagram

tools.manual.detected_faces Module

Alignments handling for Faceswap’s Manual Adjustments tool. Handles the conversion of alignments data to DetectedFace objects, and the update of these faces when edits are made in the GUI.

class tools.manual.detected_faces.DetectedFaces(tk_globals: manual.TkGlobals, alignments_path: str, input_location: str, extractor: manual.Aligner)

Handles the manipulation of DetectedFace objects stored in the alignments file. Acts as a parent class for the IO operations (saving and loading from an alignments file), the face update operations (when changes are made to alignments in the GUI) and the face filters (when a user changes the filter navigation mode.)

Parameters:

• tk_globals (manual.TkGlobals) – The tkinter variables that apply to the whole of the GUI

• alignments_path (str) – The full path to the alignments file

• input_location (str) – The location of the input folder of frames or video file

• extractor (manual.Aligner) – The pipeline for passing faces through the aligner and retrieving results

property available_masks: dict[str, int]

The mask type names stored in the alignments; type as key with the number of faces which possess the mask type as value.

property current_faces: list[list[DetectedFace]]

The most up to date full list of detected face objects.

extract() → None

Extract the faces in the current video to a user supplied folder.

Return type:

None

property extractor: manual.Aligner

The pipeline for passing faces through the aligner and retrieving results.

property face_count_per_index: list[int]

Count of faces for each frame. List is in frame index order.

The list needs to be calculated on the fly as the number of faces in a frame can change based on user actions.

property filter: Filter

Handles returning of faces and stats based on the current user set navigation mode filter.

property frame_list: list[str]

The list of all frame names that appear in the alignments file

is_frame_updated(frame_index: int) → bool

Check whether the given frame index has been updated

Parameters:

frame_index (int) – The frame index to check

Return type:

True if the given frame index has updated faces within it otherwise False

load_faces() → None

Load the faces as DetectedFace objects from the alignments file.

Return type:

None

revert_to_saved(frame_index)

Revert the frame’s alignments to their saved version for the given frame index.

Parameters:

frame_index – The frame that should have their faces reverted to their saved version

save() → None

Save the alignments file with the latest edits.

Return type:

None

save_video_meta_data(pts_time: list[int], keyframes: list[int]) → None

Save video meta data to the alignments file. This is executed if the video meta data does not already exist in the alignments file, so the video does not need to be scanned on every use of the Manual Tool.

Parameters:

• pts_time (list[int]) – A list of presentation timestamps in frame index order for every frame in the input video

• keyframes (list[int]) – A list of frame indices corresponding to the key frames in the input video.

Return type:

None

property tk_edited: BooleanVar

The variable indicating whether an edit has occurred meaning a GUI redraw needs to be triggered.

property tk_face_count_changed: BooleanVar

The variable indicating whether a face has been added or removed meaning the FaceViewer grid redraw needs to be triggered.

property tk_unsaved: BooleanVar

The variable indicating whether the alignments have been updated since the last save.

property update: FaceUpdate

Handles the adding, removing and updating of DetectedFace stored within the alignments file.

property video_meta_data: dict[Literal['pts_time', 'keyframes'], list[int]] | None

The frame meta data stored in the alignments file. If data does not exist in the alignments file then None is returned for each Key

class tools.manual.detected_faces.FaceUpdate(detected_faces: DetectedFaces)

Perform updates on DetectedFace objects stored in DetectedFaces when changes are made within the GUI.

Parameters:

detected_faces (DetectedFaces) – The parent DetectedFaces object

add(frame_index: int, pnt_x: int, width: int, pnt_y: int, height: int) → None

Add a DetectedFace object to the current frame with the given dimensions.

Parameters:

• frame_index (int) – The frame that the face is being set for

• pnt_x (int) – The left point of the bounding box

• width (int) – The width of the bounding box

• pnt_y (int) – The top point of the bounding box

• height (int) – The height of the bounding box

Return type:

None

bounding_box(frame_index: int, face_index: int, pnt_x: int, width: int, pnt_y: int, height: int, aligner: Literal['FAN', 'HRNet', 'cv2-dnn'] = 'HRNet') → None

Update the bounding box for the DetectedFace object at the given frame and face indices, with the given dimensions and update the 68 point landmarks from the Aligner for the updated bounding box.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

• pnt_x (int) – The left point of the bounding box

• width (int) – The width of the bounding box

• pnt_y (int) – The top point of the bounding box

• height (int) – The height of the bounding box

• aligner (Literal['FAN', 'HRNet', 'cv2-dnn']) – The aligner to use to generate the landmarks. Default: “HRNet”

Return type:

None

copy(frame_index: int, direction: Literal['prev', 'next']) → None

Copy the alignments from the previous or next frame that has alignments to the current frame.

Parameters:

• frame_index (int) – The frame that the needs to have alignments copied to it

• direction (Literal['prev', 'next']) – Whether to copy alignments from the previous frame with alignments, or the next frame with alignments

Return type:

None

delete(frame_index: int, face_index: int) → None

Delete the DetectedFace object for the given frame and face indices.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

Return type:

None

landmark(frame_index: int, face_index: int, landmark_index: int, shift_x: int, shift_y: int, is_zoomed: bool) → None

Shift a single landmark point for the DetectedFace object at the given frame and face indices by the given x and y values.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

• landmark_index (int) – The landmark index to shift. If a list is provided, this should be a list of landmark indices to be shifted

• shift_x (int) – The amount to shift the landmark by along the x axis

• shift_y (int) – The amount to shift the landmark by along the y axis

• is_zoomed (bool) – True if landmarks are being adjusted on a zoomed image otherwise False

Return type:

None

landmarks(frame_index: int, face_index: int, shift_x: int, shift_y: int) → None

Shift all of the landmarks and bounding box for the DetectedFace object at the given frame and face indices by the given x and y values and update the masks.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

• shift_x (int) – The amount to shift the landmarks by along the x axis

• shift_y (int) – The amount to shift the landmarks by along the y axis

Return type:

None

Notes

Whilst the bounding box does not need to be shifted, it is anyway, to ensure that it is aligned with the newly adjusted landmarks.

landmarks_rotate(frame_index: int, face_index: int, angle: float, center: ndarray) → None

Rotate the landmarks on an Extract Box rotate for the DetectedFace object at the given frame and face indices for the given angle from the given center point.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

• angle (float) – The angle, in radians to rotate the points by

• center (ndarray) – The center point of the Landmark’s Extract Box

Return type:

None

landmarks_scale(frame_index: int, face_index: int, scale: ndarray, center: ndarray) → None

Scale the landmarks on an Extract Box resize for the DetectedFace object at the given frame and face indices from the given center point.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

• scale (ndarray) – The amount to scale the landmarks by

• center (ndarray) – The center point of the Landmark’s Extract Box

Return type:

None

mask(frame_index: int, face_index: int, mask: ndarray, mask_type: str) → None

Update the mask on an edit for the DetectedFace object at the given frame and face indices, for the given mask and mask type.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

• mask (ndarray) – The mask to replace

• mask_type (str) – The name of the mask that is to be replaced

Return type:

None

post_edit_trigger(frame_index: int, face_index: int) → None

Update the jpg thumbnail, the viewport thumbnail, the landmark masks and the aligned face on a face edit.

Parameters:

• frame_index (int) – The frame that the face is being set for

• face_index (int) – The face index within the frame

Return type:

None

class tools.manual.detected_faces.Filter(detected_faces: DetectedFaces)

Returns stats and frames for filtered frames based on the user selected navigation mode filter.

Parameters:

detected_faces (DetectedFaces) – The parent DetectedFaces object

property count: int

The number of frames that meet the filter criteria returned by get().

property frame_meets_criteria: bool

True if the current frame meets the selected filter criteria otherwise False.

property frames_list: list[int]

The list of frame indices that meet the filter criteria returned by get().

property raw_indices: dict[Literal['frame', 'face'], list[int]]

The frame and face indices that meet the current filter criteria for each displayed face.

Classes

DetectedFaces(tk_globals, alignments_path, ...)	Handles the manipulation of DetectedFace objects stored in the alignments file.
FaceUpdate(detected_faces)	Perform updates on DetectedFace objects stored in DetectedFaces when changes are made within the GUI.
Filter(detected_faces)	Returns stats and frames for filtered frames based on the user selected navigation mode filter.

tools.manual.globals Module

Holds global tkinter variables and information pertaining to the entire Manual tool

class tools.manual.globals.CurrentFrame(image: ndarray = <factory>, scale: float = 1.0, interpolation: int = 3, display_dims: tuple[int, int]=(0, 0), filename: str = '')

Dataclass for holding information about the currently displayed frame

Parameters:

• image (ndarray)

• scale (float)

• interpolation (int)

• display_dims (tuple[int, int])

• filename (str)

display_dims: tuple[int, int] = (0, 0)

The size of the currently displayed frame, in the display window

Type:

tuple[int, int]`

filename: str = ''

The filename of the currently displayed frame

Type:

str

image: ndarray = <dataclasses._MISSING_TYPE object>

The currently displayed frame in original dimensions

Type:

numpy.ndarry

interpolation: int = 3

The opencv interpolator ID to use for resizing the image to the display window

Type:

int

scale: float = 1.0

The scaling factor to use to resize the image to the display window

Type:

float

class tools.manual.globals.TKVars(frame_index: IntVar, transport_index: IntVar, face_index: IntVar, filter_distance: IntVar, update: BooleanVar, update_active_viewport: BooleanVar, is_zoomed: BooleanVar, filter_mode: StringVar, faces_size: StringVar)

Holds the global TK Variables

Parameters:

• frame_index (IntVar)

• transport_index (IntVar)

• face_index (IntVar)

• filter_distance (IntVar)

• update (BooleanVar)

• update_active_viewport (BooleanVar)

• is_zoomed (BooleanVar)

• filter_mode (StringVar)

• faces_size (StringVar)

face_index: IntVar = <dataclasses._MISSING_TYPE object>

The face index of the currently selected face

Type:

tkinter.IntVar

faces_size: StringVar = <dataclasses._MISSING_TYPE object>

The pixel size of faces in the viewport

Type:

tkinter.StringVar

filter_distance: IntVar = <dataclasses._MISSING_TYPE object>

The amount to filter by distance

Type:

tkinter.IntVar

filter_mode: StringVar = <dataclasses._MISSING_TYPE object>

The currently selected filter mode

Type:

tkinter.StringVar

frame_index: IntVar = <dataclasses._MISSING_TYPE object>

The absolute frame index of the currently displayed frame

Type:

tkinter.IntVar

is_zoomed: BooleanVar = <dataclasses._MISSING_TYPE object>

Whether the main window is zoomed in to a face or out to a full frame

Type:

tkinter.BooleanVar

transport_index: IntVar = <dataclasses._MISSING_TYPE object>

The transport index of the currently displayed frame when filters have been applied

Type:

tkinter.IntVar

update: BooleanVar = <dataclasses._MISSING_TYPE object>

Whether an update has been performed

Type:

tkinter.BooleanVar

update_active_viewport: BooleanVar = <dataclasses._MISSING_TYPE object>

Whether the viewport needs updating

Type:

tkinter.BooleanVar

class tools.manual.globals.TkGlobals(input_location: str)

Holds Tkinter Variables and other frame information that need to be accessible from all areas of the GUI.

Parameters:

input_location (str) – The location of the input folder of frames or video file

property current_frame: CurrentFrame

The currently displayed frame in the frame viewer with it’s meta information.

Type:

CurrentFrame

property face_index: int

The currently displayed face index when in zoomed mode.

Type:

int

property frame_count: int

The total number of frames for the input location

Type:

int

property frame_display_dims: tuple[int, int]

The (width, height) of the video display frame in pixels.

Type:

tuple

property frame_index: int

The currently displayed frame index. NB This returns -1 if there are no frames that meet the currently selected filter criteria.

Type:

int

property is_video: bool

True if the input is a video file, False if it is a folder of images.

Type:

bool

property is_zoomed: bool

True if the frame viewer is zoomed into a face, False if the frame viewer is displaying a full frame.

Type:

bool

set_current_frame(image: ndarray, filename: str) → None

Set the frame and meta information for the currently displayed frame. Populates the attribute current_frame

Parameters:

• image (numpy.ndarray) – The image used to display in the Frame Viewer

• filename (str) – The filename of the current frame

Return type:

None

set_face_index(index: int) → None

Set the currently selected face index

Parameters:

index (int) – The currently selected face index

Return type:

None

set_frame_count(count: int) → None

Set the count of total number of frames to frame_count when the FramesLoader has completed loading.

Parameters:

count (int) – The number of frames that exist for this session

Return type:

None

set_frame_display_dims(width: int, height: int) → None

Set the size, in pixels, of the video frame display window and resize the displayed frame.

Used on a frame resize callback, sets the :attr:frame_display_dims`.

Parameters:

• width (int) – The width of the frame holding the video canvas in pixels

• height (int) – The height of the frame holding the video canvas in pixels

Return type:

None

set_zoomed(state: bool) → None

Set the current zoom state

Parameters:

state (bool) – True for zoomed False for full frame

Return type:

None

property var_faces_size: StringVar

The variable holding the currently selected Faces Viewer thumbnail size.

Type:

tkinter..IntVar

property var_filter_distance: IntVar

The variable holding the currently selected threshold distance for misaligned filter mode.

Type:

tkinter.IntVar

property var_filter_mode: StringVar

The variable holding the currently selected navigation filter mode.

Type:

tkinter.StringVar

property var_frame_index: IntVar

The current absolute frame index of the currently displayed frame.

Type:

tkinter.IntVar

property var_full_update: BooleanVar

Flag to indicate that whole GUI should be refreshed

Type:

tkinter.BooleanVar

property var_transport_index: IntVar

The current index of the display frame’s transport slider.

Type:

tkinter.IntVar

property var_update_active_viewport: BooleanVar

Boolean Variable that is traced by the viewport’s active frame to update.

Type:

tkinter.BooleanVar

Classes

CurrentFrame(image, scale, interpolation, ...)	Dataclass for holding information about the currently displayed frame
TKVars(frame_index, transport_index, ...)	Holds the global TK Variables
TkGlobals(input_location)	Holds Tkinter Variables and other frame information that need to be accessible from all areas of the GUI.

tools.manual.manual Module

Main entry point for the Manual Tool. A GUI app for editing alignments files

class tools.manual.manual.Aligner(tk_globals: TkGlobals)

The Aligner class sets up an extraction pipeline for each of the current Faceswap Aligners, along with the Landmarks based Maskers. When new landmarks are required, the bounding boxes from the GUI are passed to this class for pushing through the pipeline. The resulting Landmarks and Masks are then returned.

Parameters:

tk_globals (TkGlobals) – The tkinter variables that apply to the whole of the GUI

get_landmarks(frame_index: int, face_index: int, aligner: Literal['FAN', 'HRNet', 'cv2-dnn']) → ndarray

Feed the detected face into the alignment pipeline and retrieve the landmarks.

The face to feed into the aligner is generated from the given frame and face indices.

Parameters:

• frame_index (int) – The frame index to extract the aligned face for

• face_index (int) – The face index within the current frame to extract the face for

• aligner (Literal['FAN', 'HRNet', 'cv2-dnn']) – The aligner to use to extract the face

Return type:

The 68 point landmark alignments

property is_initialized: bool

The Aligners are initialized in a background thread so that other tasks can be performed whilst we wait for initialization. True is returned if the aligner has completed initialization otherwise False.

link_faces(detected_faces: DetectedFaces) → None

As the Aligner has the potential to take the longest to initialize, it is kicked off as early as possible. At this time DetectedFaces is not yet available.

Once the Aligner has initialized, this function is called to add the DetectedFaces class as a property of the Aligner.

Parameters:

detected_faces (DetectedFaces) – The class that holds the DetectedFace objects for the current Manual session

Return type:

None

set_normalization_method(method: Literal['none', 'clahe', 'hist', 'mean']) → None

Change the normalization method for faces fed into the aligner. The normalization method is user adjustable from the GUI. When this method is triggered the method is updated for all aligner pipelines.

Parameters:

method (Literal['none', 'clahe', 'hist', 'mean']) – The normalization method to use

Return type:

None

class tools.manual.manual.FrameLoader(tk_globals: TkGlobals, frames_location: str, video_meta_data: dict[Literal['pts_time', 'keyframes'], list[int]] | None, file_list: list[str])

Loads the frames, sets the frame count to TkGlobals.frame_count and handles the return of the correct frame for the GUI.

Parameters:

• tk_globals (TkGlobals) – The tkinter variables that apply to the whole of the GUI

• frames_location (str) – The path to the input frames

• video_meta_data (dict[T.Literal['pts_time', 'keyframes'], list[int]] | None) – The meta data held within the alignments file, if it exists and the input is a video

• file_list (list[str]) – The list of filenames that exist within the alignments file

property is_initialized: bool

True if the Frame Loader has completed initialization.

property video_meta_data: dict[Literal['pts_time', 'keyframes'], list[int]] | None

The pts_time and key frames for the loader.

class tools.manual.manual.Manual(arguments: Namespace)

The main entry point for Faceswap’s Manual Editor Tool. This tool is part of the Faceswap Tools suite and should be called from python tools.py manual command.

Allows for visual interaction with frames, faces and alignments file to perform various adjustments to the alignments file.

Parameters:

arguments (Namespace) – The argparse arguments as passed in from tools.py

process() → None

The entry point for the Visual Alignments tool from lib.tools.manual.cli.

Launch the tkinter Visual Alignments Window and run main loop.

Return type:

None

Classes

Aligner(tk_globals)	The Aligner class sets up an extraction pipeline for each of the current Faceswap Aligners, along with the Landmarks based Maskers.
FrameLoader(tk_globals, frames_location, ...)	Loads the frames, sets the frame count to TkGlobals.frame_count and handles the return of the correct frame for the GUI.
Manual(arguments)	The main entry point for Faceswap's Manual Editor Tool.

Class Inheritance Diagram

tools.manual.thumbnails Module

Thumbnail generator for the manual tool

class tools.manual.thumbnails.ProgressBar(p_bar: tqdm | None = None)

Thread-safe progress bar for tracking thumbnail generation progress

Parameters:

p_bar (tqdm | None)

class tools.manual.thumbnails.ThumbsCreator(detected_faces: DetectedFaces, input_location: str, single_process: bool)

Background loader to generate thumbnails for the alignments file. Generates low resolution thumbnails in parallel threads for faster processing.

Parameters:

• detected_faces (DetectedFaces) – The DetectedFace objects for this video

• input_location (str) – The location of the input folder of frames or video file

• single_process (bool) – True to generated thumbs in a single process otherwise False

generate_cache() → None

Extract the face thumbnails from a video or folder of images into the alignments file

Return type:

None

property has_thumbs: bool

True if the alignments file holds thumbnail images otherwise False.

class tools.manual.thumbnails.VideoMeta(key_frames: list[int] | None = None, pts_times: list[int] | None = None)

Holds meta information about a video file

Parameters:

• key_frames (list[int] | None) – List of key frame indices for the video

• pts_times (list[int] | None) – List of presentation timestamps for the video

Classes

ProgressBar([p_bar])	Thread-safe progress bar for tracking thumbnail generation progress
ThumbsCreator(detected_faces, ...)	Background loader to generate thumbnails for the alignments file.
VideoMeta([key_frames, pts_times])	Holds meta information about a video file
